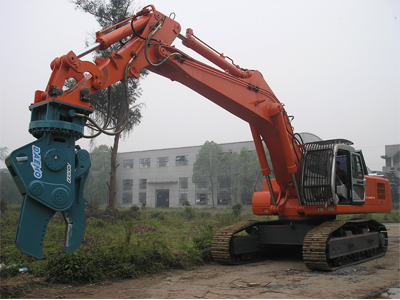

CEJD460-6

Main technical characteristic of Hydraulic Shears CEJD460-6

○ Good flexibility ensure moving freely in the storage yard
○ Wide working scope and upper carriage could swing in 360 o which realized picking heavy scrap in the storage heap extensively
○ Wide shear angle and the shears could working in pitching and swinging in 360 o
○ Hydraulic drive, protecting environment and safe, which realized to cut iron scrap with non-oxygen
○ Reduce the dimension requirement of iron scrap
○ Materials could separating
○ The blade of shears could change easily

Main Technology Data of Hydraulic Shears CEJD460-6

No.	Item		Unit	Date
1	Machine weight		t	45
2	Diesel engine	Model		Y315L2-4 three phases, asynchronous electromotor
		Power	kW/rpm	200
		Speed		1480
3	Hydraulic system	Main pump		Variable double pumps
		Pressure of main oil circuit	MPa	2×320
		Flow of main oil circuit	L/min	29.4
4	Performance parameter	Swing speed	r/min	0-9.0
		Travel speed	km/h	3.0/5.0
		Max. pulling force	kN	321
		Ground pressure	MPa	0.083
5	Working date	Boom length	mm	7200
		Stick length	mm	2800
		Max. cutting height	mm	9655
		Max. cutting radius	mm	12140
		Max. cutting depth	mm	7833
6	The model of shears be matched			RS1200V

Main Components of Hydraulic Shears CEJD460-6

No.	Component	Manufacturer
1	Diesel engine	Cummins/America
2	Main pump	Rexroth/Germany
3	Main valve	Rexroth/Germany
4	Swing motor	Rexroth/Germany
5	Travel motor	Rexroth/Germany
6	Pilot valve	Rexroth/Germany
7	Hydraulic hose+ System seal	Italy
8	Cylinder seal	Trelleborg/America
9	Air-condition system	Wuhan Jindong/China
10	Shears	DEMO/Korea
