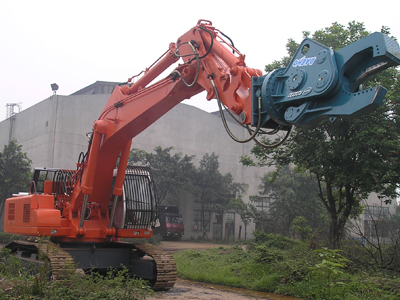

○ Good flexibility ensure moving freely in the storage yard
○ Wide working scope and upper carriage could swing in 360 o which realized picking heavy scrap in the storage heap extensively
○ Wide shear angle and the shears could working in pitching and swinging in 360 o
○ Hydraulic drive, protecting environment and safe, which realized to cut iron scrap with non-oxygen
○ Reduce the dimension requirement of iron scrap
○ Materials could separating
○ The blade of shears could change easily

No.

Item

Unit

Date

1

Machine weight

t

45

2

Diesel engine

Model

F8L413F(Deutz)

Power

kW/rpm

140

Speed

2000

3

Hydraulic system

Main pump

Variable double pumps with total power

Pressure of main oil circuit

MPa

2×250

Flow of main oil circuit

L/min

27.4

4

Performance

parameter

Swing speed

r/min

0-7.1

Travel speed

km/h

2.46

Max. pulling force

kN

295

Ground pressure

MPa

0.083

5

Working date

Boom length

mm

7200

Stick length

mm

2800

Max. cutting height

mm

9655

Max. cutting radius

mm

12140

Max. cutting depth

mm

7833

6

The model of shears be matched

RS1200V

No.

Component

Manufacturer

1

Diesel engine

Huabei diesel engine plant

2

Main pump

Liyuan Hydraulic

3

Main valve

Fengyang Hydraulic

4

Swing motor

Rexroth/Germany

5

Travel motor

Rexroth/Germany

6

Pilot valve

JEIL/Korea

7

Hydraulic hose+ System seal

Italy

8

Air-condition system

Wuhan Jindong/China

9

Shears

DEMO/Korea
