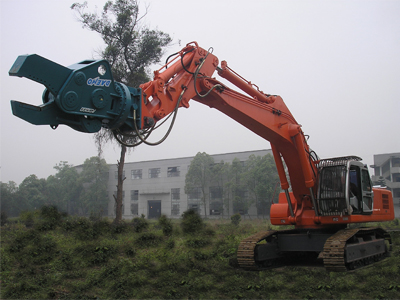

CEJ400-5

Main technical characteristic of Hydraulic Shears CEJ400-5

○ Good flexibility ensure moving freely in the storage yard
○ Wide working scope and upper carriage could swing in 360 o which realized picking heavy scrap in the storage heap extensively
○ Wide shear angle and the shears could working in pitching and swinging in 360 o
○ Hydraulic drive, protecting environment and safe, which realized to cut iron scrap with non-oxygen
○ Reduce the dimension requirement of iron scrap
○ Materials could separating
○ The blade of shears could change easily

Main Technology Data of Hydraulic Shears CEJ400-5

No.	Item		Unit	Date
1	Machine weight		t	37
2	Diesel engine	Model		F8L413F(Deutz)
		Power	kW/rpm	140
		Speed		2000
3	Hydraulic system	Type		Variable system controlled by total power with double pumps&double circuits
		Pressure of main oil circuit	MPa	27.4
		Flow of main oil circuit	L/min	2×250
4	Performance parameter	Swing speed	r/min	0-9.0
		Travel speed	km/h	2.3
		Max. pulling force	kN	293
		Ground pressure	MPa	0.076
5	Working date	Boom length	mm	6200
		Stick length	mm	3000
		Max. cutting height	mm	8400
		Max. cutting radius	mm	11000
		Max. cutting depth	mm	7300
6	The model of shears be matched			RS1000V

Main Components of Hydraulic Shears CEJ400-5

No.	Component	Manufacturer
1	Diesel engine	Huabei diesel engine plant
2	Main pump	Liyuan Hydraulic
3	Main valve	Fengyang Hydraulic
4	Swing motor	Liyuan Hydraulic
5	Travel motor	Liyuan Hydraulic
6	Pilot valve	JEIL/Korea
7	Hydraulic hose+ System seal	Italy
8	Air-condition system	Wuhan Jindong/China
9	Shears	DEMO/Korea
