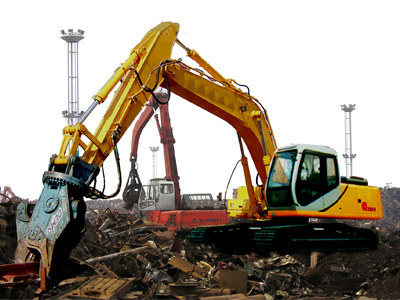

○ Good flexibility ensure moving freely in the storage yard
○ Wide working scope and upper carriage could swing in 360 o which realized picking heavy scrap in the storage heap extensively
○ Wide shear angle and the shears could working in pitching and swinging in 360 o
○ Hydraulic drive, protecting environment and safe, which realized to cut iron scrap with non-oxygen
○ Reduce the dimension requirement of iron scrap
○ Materials could separating
○ The blade of shears could change easily

No.

Item

Unit

Date

1

Machine weight

t

23

2

Diesel engine

Model

B5.9-C Cummins water-cooled

Power

kW/rpm

125

Speed

2100

3

Hydraulic system

Main pump

The control technology of the negative flow and alternate power

Pressure of main oil circuit

MPa

29.4

Flow of main oil circuit

L/min

2×235

4

Performance

parameter

Swing speed

r/min

13

Travel speed

km/h

3.3/5.2

Max. pulling force

KN

181

Ground pressure

MPa

0.053

5

Working date

Boom length

mm

5850

Stick length

mm

2950

Max. cutting height

mm

9480

Max. cutting radius

mm

10630

Max. cutting depth

mm

7364

6

The model of shears be matched

RS800HRV

No.

Component

Manufacturer

1

Diesel engine

Cummins/America

2

Main pump

Toshiba Machinery/Japan

3

Main valve

Toshiba Machinery/Japan

4

Swing mechanism

Toshiba Machinery/Japan

5

Travel mechanism

Nabtesco/Japan

6

Pilot valve

Kawasaki/Japan

7

Hydraulic hose+ System seal

Parker/America

8

Air-condition system

Wuhan Jindong/China

9

Shears

DEMO/Korea
