○ Air-cooled diesel engine with Germany Deutz technology: environment protecting, power saving
○ Control system by total power for double pumps & circuits with reasonably distributing and using the power
○ The confluence of double pump, raising the working efficiency
○ The frequent-open swing, the walking brake
○ Independent oil-cooling system
○ Better reliability with hose and seal from Italy and Trelleborg cylinder seals
○ Case shape structure, attachment designed by CAD and the casting-welding structure realizing the high strength structure.
○ The high strength and high steel platform and the undercharge guaranteeing the powerful digging and walking
○ The multi-function meters of detection of the various pressure ,temperature and oil level to have sound-light alarm
○ Cab is provided with large tri-dimensional ventilation, fresh air circulation, large capacity air condition without fluorine
○ The operator’s cab with the wide vision field and the streamlined appearance, matching the decoration and function with human nature, and offering the working environment in a car.
○ Automatically injecting the fuel(Option)

No.

Item

Unit

Date

Face shovel

Backhoe

1

Machine weight

t

39

37

2

Bucket capacity

Standard

m ³

2.0

1.7

Range

m ³

1.6~2.5

1.0~2.0

3

Diesel engine

Model

F8L413F

Power /Speed

kW/rpm

140/2000

Fuel tank Capacity

L

420

4

Hydraulic system

Max. pressure of main oil circuit

MPa

27.4

Max. flow of main oil circuit

L/min

2×250

Operating style

Pilot control

Hydraulic oil tank capacity

L

600

5

Performance

Swing speed

r/min

9.25

Travel speed

km/h

2.3

Max. pulling force

kN

293

Gradeability

%

70

Ground pressure

MPa

0.076

Circulating time of operation

s

16~19

6

Working date

Boom length

mm

3800

6200

Stick length

mm

2980

3000

Max. digging radius

mm

8200

11000

Max. digging depth

mm

2930

7300

Max. digging height

mm

8300

8400

Max. unloading height

mm

5800

5800

Max. digging force of stick

kN

194

136

Max. breakout force of bucket

kN

180

150

No.

Component

Type

Manufacturer

1

Diesel Engine

F8L413F

Huabei diesel works

2

Main Pump

A7V160

Liyuan Hydraulic

3

Left main Valve

WYZ-8

Fengyang Hydraulic

4

Right main Valve

WYZ-9

Fengyang Hydraulic

5

Monomer Valve

WYZ-28

Fengyang Hydraulic

6

Swing motor

A2F160

Liyuan Hydraulic

7

Swing reduction gear

CJ200HA

BONNY reduction Co.

8

Travel motor

A2F107

Liyuan Hydraulic

9

Travel reduction gear

CJ700X

BONNY reduction Co.

10

Armrest pilot valve

JEIL/Korea

11

Foot pedal pilot valve

Kawasaki/Japan

12

Change valve

4WE6C

Rexroth/Germany

13

Hydraulic hose + System seal

Manuli/Italy

14

Driver’s seat

Grammer

15

Air-condition system

Wuhan Jindong /China

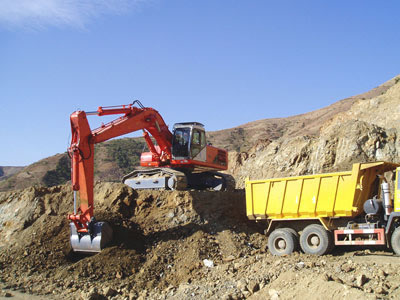

The hydraulic excavator CE400-5 equipped domestic and military-industry technology components to satisfied customers’ desire for the high cost performance and the international general streamlined appearance. it has the outstanding performance, strong digging force and efficient productivity. The powerful earth moving excavator CE400-5 is applicable to the task of digging of soil gradeⅠ~Ⅲ, and loading of exploded rocks, such as road construction, municipal project, water and electricity construction, exploiting and loading in all classes of mine, etc. The powerful mining excavator CE400-5 is applicable to the task of the exploiting and loading in all classes of mine, water and electricity construction, etc.
