○ Three phase-asynchronous electromotor, the only technology in China for hydraulic material handler powered by electricity, it is of benefit to environment protecting, power saving, easy service & maintenance, and low operating cost.
○ New dual electric brush and collector ring bring longer lifetime.
○ Control with constant power of single pump, crossover power of two pumps for reasonably distributing and using the power
○ Starting with zero displacement so as to reduce the moment of resistance at starting
○ T echnique with pressure cut to protect hydraulic system and reduce the system heat
○ Secondary overloading for swing and normal closed brake for swing and travel ensure smoothly brake
○ Integrated oil& water cooler with compact conformation
○ The working attachment realized automatic level crowding with bucket to increase the bucket filling factor
○ Attachment designed by CAD, case shape and casting-welding structure realizing the high strength
○ Automatic central lubricating system to save daily lubrication
○ Multi-function meters show automatic illumination and detection of the various pressure ,temperature and oil level to have sound-light alarm
○ Better reliability with Parker hose &seals and Trelleborg cylinder seals
○ The Technique with disassembled undercarriage which is advanced to transport the machine quickly
○ Cab is provided with large tri-dimensional ventilation, fresh air circulation, large capacity air condition without fluorine
○ The operator’s cab with the wide vision field and the streamlined appearance, matching the decoration and function with human nature, and offering the working environment in a car.

No.

Item

Unit

Date

Face shovel

Backhoe

1

Machine weight

t

65

63

2

Bucket capacity

Standard

m 3

4.0

3.0

Range

m 3

3.5~5.0

2.7~4.0

3

Electromotor

Model

Y315L2-4

Power /Speed

kW/rpm

200/1480

Voltage

V

380

4

Hydraulic system

Type

Crossing power variable system with two pumps and two loops

Max. pressure of main oil circuit

MPa

30

Max. flow of main oil circuit

L/min

2×400

Operating style

Pilot control

Hydraulic oil tank capacity

L

650

5

Performance

Swing speed

r/min

6.0

Travel speed

km/h

3.0

Max. pulling force

kN

460

Gradeability

%

70

Ground pressure

MPa

0.096

Circulating time of operation

s

24

6

Working date

Boom length

mm

4200

7100

Stick length

mm

2800

3000

Max. digging radius

mm

 9061

11950

Max. digging depth

mm

3200

7704

Max. digging height

mm

9521

10542

Max. unloading height

mm

 7911

7158

Max. digging force of stick

kN

174

174

Max. breakout force of bucket

kN

214

214

No.

Component

Type

Manufacturer

1

Electromotor

Y315L2-4

Chongqing Electromotor/ China

2

Main pump

A11VO260

Rexroth /Germany

3

Main Valve

8M8

Rexroth /Germany

4

Double join valves

MO/2MO

Rexroth /Germany

5

Swing motor

A2FE125

Rexroth /Germany

6

Swing reduction gear

GTB80

Rexroth /Germany

7

Travel motor

A2FE125

Rexroth /Germany

8

Travel reduction gear

GFT110

Rexroth /Germany

9

Armrest pilot valve

4TH6E

Rexroth /Germany

10

Foot pedal pilot valve

2TH6R

Rexroth /Germany

11

Logical valve

026710

Rexroth /Germany

12

Solenoid valve

4WE

Rexroth /Germany

13

Driver’s seat

DS-85H

Grammer

14

Hydraulic hose + System seal

Parker/America

15

Cylinder seal

Trelleborg/America

16

Automatic lubricating system

BEKA/Germany orLINCOLN/America

17

Track assembly

ITM or Berco/Italy

18

Air-condition system

Wuhan Jindong /China

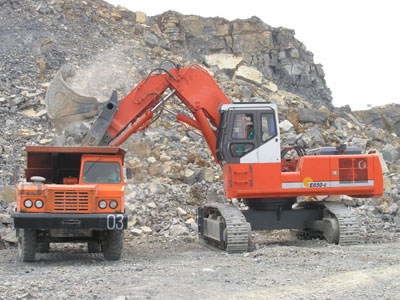

The hydraulic excavator CED650-6, which are based on design platform of the international cooperation and global purchasing of components, adopt the latest technology in the world to meet customer’s desire for best performance. Bonny machines have a streamlined appearance which are accepted by international customers, perfect performance, powerful digging force, high productivity and loading efficiency at low operation cost, more availability and long operation life. The powerful earth-moving excavators are applicable to the task of digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc.; The powerful mining excavators are suitable for different mines such as non-ferrous metal mine, building material mine, phosphate ore, strip mine and other stripping &loading operation in water power plant.
