○ Three phase-asynchronous electromotor, the only technology in China for hydraulic material handler powered by electricity, it is of benefit to environment protecting, power saving, easy service & maintenance, and low operating cost.
○ New dual electric brush and collector ring bring longer lifetime.
○ Control with constant power of single pump, crossover power of two pumps for reasonably distributing and using the power
○ Starting with zero displacement so as to reduce the moment of resistance at starting
○ T echnique with pressure cut to protect hydraulic system and reduce the system heat
○ Secondary overloading for swing and normal closed brake for swing and travel ensure smoothly brake
○ Integrated oil& water cooler with compact conformation
○ The working attachment realized automatic level crowding with bucket to increase the bucket filling factor
○ Attachment designed by CAD, case shape and casting-welding structure realizing the high strength
○ Automatic central lubricating system to save daily lubrication
○ Multi-function meters show automatic illumination and detection of the various pressure ,temperature and oil level to have sound-light alarm
○ Better reliability with Parker hose &seals and Trelleborg cylinder seals
○ The Technique with disassembled undercarriage which is advanced to transport the machine quickly
○ Cab is provided with large tri-dimensional ventilation, fresh air circulation, large capacity air condition without fluorine
○ The operator’s cab with the wide vision field and the streamlined appearance, matching the decoration and function with human nature, and offering the working environment in a car.

No.

Item

Unit

Date

Face shovel

Backhoe

1

Machine weight

t

46

45

2

Bucket capacity

Standard

m 3

2.5

2.0

Range

m 3

2.0 ~2.5

1.0~2.5

3

Electromotor

Model

Y315L2-4

Power /Speed

kW/rpm

200/1480

Voltage

V

380

4

Hydraulic system

Type

variable system controlled by Crossing power  with two pumps and two circuits

Max. pressure of main oil circuit

MPa

29.4

Max. flow of main oil circuit

L/min

2×320

Operating style

Pilot control

Hydraulic oil tank capacity

L

420

5

Performance

Swing speed

r/min

9.0

Travel speed

km/h

3.0/5.0

Max. pulling force

kN

321

Gradeability

%

70

Ground pressure

MPa

0.077

Circulating time of operation

s

16~19

6

Working date

Boom length

mm

3950

6400

Stick length

mm

2600

2800

Max. digging radius

mm

 8260

11315

Max. digging depth

mm

2440

7098

Max. digging height

mm

 9240

9204

Max. unloading height

mm

6630

5944

Max. digging force of stick

kN

243

175

Max. breakout force of bucket

kN

230

186

No.

Component

Type

Manufacturer

1

Electromotor

Y315L2—4

Chongqing Electromotor Works/ China

2

Main pump

A11VLO190

Rexroth /Germany

3

Main Valve

M8

Rexroth /Germany

4

Double join valves

2MO

Rexroth /Germany

5

Swing motor

A2FE125

Rexroth /Germany

6

Swing reduction gear

GFB60T2

Rexroth /Germany

7

Travel motor

A6VE107

Rexroth /Germany

8

Travel reduction gear

GFT80T3

Rexroth /Germany

9

Logical Valve

026710

Rexroth /Germany

10

Isolating Valve

MH3WA

Rexroth /Germany

11

Foot pedal pilot valve

4TH6N

Rexroth /Germany

12

Armrest pilot valve

4TH6E

Rexroth /Germany

13

Electromagnetism Valve

4WE6C

Rexroth /Germany

14

Hydraulic hose + System seal

Manuli/Italy

15

Cylinder seal

Trelleborg

16

Driver’s seat

Grammer

17

Air-condition system

Wuhan Jindong /China

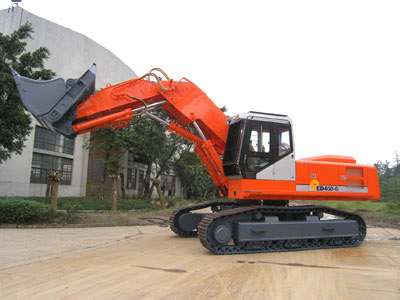

The hydraulic excavator CED460-6, which are based on design platform of the international cooperation and global purchasing of components, adopt the latest technology in the world to meet customer’s desire for best performance. Bonny machines have a streamlined appearance which are accepted by international customers, perfect performance, powerful digging force, high productivity and loading efficiency at low operation cost, more availability and long operation life. The powerful earth-moving excavators are applicable to the task of digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc.; The powerful mining excavators are suitable for different mines such as non-ferrous metal mine, building material mine, phosphate ore, strip mine and other stripping &loading operation in water power plant.
