○ Three phase-asynchronous electromotor, the only technology in China for hydraulic material handler powered by electricity, it is of benefit to environment protecting, power saving, easy service & maintenance, and low operating cost.
○ New dual electric brush and collector ring bring longer lifetime.
○ Control system by total power for double pumps&circuits with reasonable distributing and using of the power.
○ Confluence of two pumps for combined movements and increasing operating efficiency
○ Normal closed swing brake
○ Independent oil-cooling system with bigger area of dissipation and better heat radiation
○ Case shape structure, attachment designed by CAD and the casting-welding structure realizing the high strength structure.
○ Better reliability with Italy hose & seals and cylinder seals
○ The Technique with disassembled undercarriage which is advanced to transport the machine quickly
○ Cab is provided with large tri-dimensional ventilation, fresh air circulation, large capacity air condition without fluorine
○ The operator’s cab with the wide vision field and the streamlined appearance, matching the decoration and function with human nature, and offering the working environment in a car.

No.

Item

Unit

Date

Face shovel

Backhoe

1

Machine weight

t

46

45

2

Bucket capacity

Standard

m 3

2.5

2.0

Range

m 3

2.0 ~2.5

1.0~2.5

3

Electromotor

Model

Y315M1-4

Power /Speed

kW/rpm

132/1480

Voltage

V

380

4

Hydraulic system

Max. pressure of main oil circuit

MPa

27.40

Max. flow of main oil circuit

L/min

2×250

Operating style

Pilot control

Hydraulic oil tank capacity

L

650

5

Performance

Swing speed

r/min

7.1

Travel speed

km/h

2.46

Max. pulling force

kN

295

Gradeability

%

70

Ground pressure

MPa

0.083

Circulating time of operation

s

16~19

6

Working date

Boom length

mm

3950

6400

Stick length

mm

2600

2800

Max. digging radius

mm

8260

11315

Max. digging depth

mm

2440

 7098

Max. digging height

mm

9240

9204

Max. unloading height

mm

6630

 5944

Max. digging force of stick

KN

243

 175

Max. breakout force of bucket

KN

230

186

No.

Component

Type

Manufacturer

1

Electromotor

Y315M

Chongqing Electromotor Works/ China

2

Main Pump

A7V160

Liyuan Hydraulic

3

Left main Valve

WYZ-8

Fengyang Hydraulic

4

Right main Valve

WYZ-9

Fengyang Hydraulic

5

Monomer Valve

WYZ-7

Fengyang Hydraulic

6

Swing motor

A2FE

Rexroth/Germany

7

Swing reduction gear

GFB

Rexroth/Germany

8

Travel motor

A2FE

Rexroth/Germany

9

Travel reduction gear

GFT

Rexroth/Germany

10

Armrest pilot valve

4TH6E

Kawasaki/Japan

11

Foot pedal pilot valve

4TH6N

JEIL/Korea

12

Hydraulic hose + System seal

MANULI/Italy

13

Driver’s seat

Grammer

14

Air-condition system

Wuhan Jindong /China

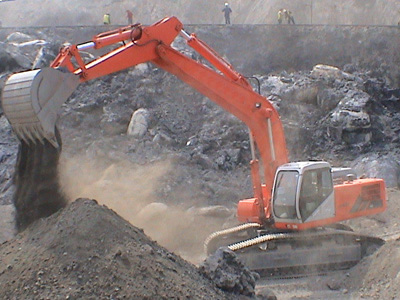

The hydraulic excavator CED460-5, which are based on design platform of the international cooperation and global purchasing of components, adopt the latest technology in the world to meet customer’s desire for best performance. Bonny machines have a streamlined appearance which are accepted by international customers, perfect performance, powerful digging force, high productivity and loading efficiency at low operation cost, more availability and long operation life. The powerful earth-moving excavators are applicable to the task of digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc.; The powerful mining excavators are suitable for different mines such as non-ferrous metal mine, building material mine, phosphate ore, strip mine and other stripping &loading operation in water power plant.

The hydraulic excavator CED460-5 has combined electric-hydraulic technology successfully, it is the exclusive technology of Bonny. The operation cost is only 50-70% of that for excavator powered by diesel engine. So it is very applicable to the task of the exploiting and loading in all classes of mine, water and electricity construction on the site with convenience electric power.
